Sculpture Winch is designed to pull you on a wakeboard, wakeskate, snowboard, surfboard, foil or anything else you love to shred.

Sculpture Winch. High speed electric winch for Action Sports. Wake, Wakeboard, Foil, Surf or Snowboard.

RIDE YOUR
OWN WAY

Zero Noise BLK.png

ZERO
NOISE

Quietest winch in the industry.

Don’t bother any civilians.

Winch Brain BLK.png

WINCH
BRAIN

Winch Brain monitors your batteries and manages your perfect pull.

Horizontal BLK.png

HORIZONTAL
DESIGN

Stable position.
Fast mounting.

DIRECT DRIVE
CONCEPT

The hub motor is the spool.

No gear wheels, chains or other moving parts which cause wear or noise.

Sculpture Winch. High speed electric winch for Action Sports. Wake, Wakeboard, Foil, Surf or Snowboard.

Sculpture Winch is an action sports towing device, powered by high performance LiPo batteries. Designed to pull you on a wakeboard, wakeskate, snowboard, surfboard, foil or anything you love to shred. One set of batteries will give you about 30+ hits (about 2 hours session). The brushless hub motor will let you do deep water starts easily.

Adjustable speed from 15 km/h up to 50 km/h.

Sculpture Winch. High speed electric winch for Action Sports. Wake, Wakeboard, Foil, Surf or Snowboard.

REVOLUTIONARY
ELECTRIC WINCH

ROPE

 200m Dyneema®

HITS

30+ (~2h session)

SPEED

 50 km/h

NOISE

zero noise direct drive

WEIGHT

27 kg

DIMENSIONS

39 / 49 / 24

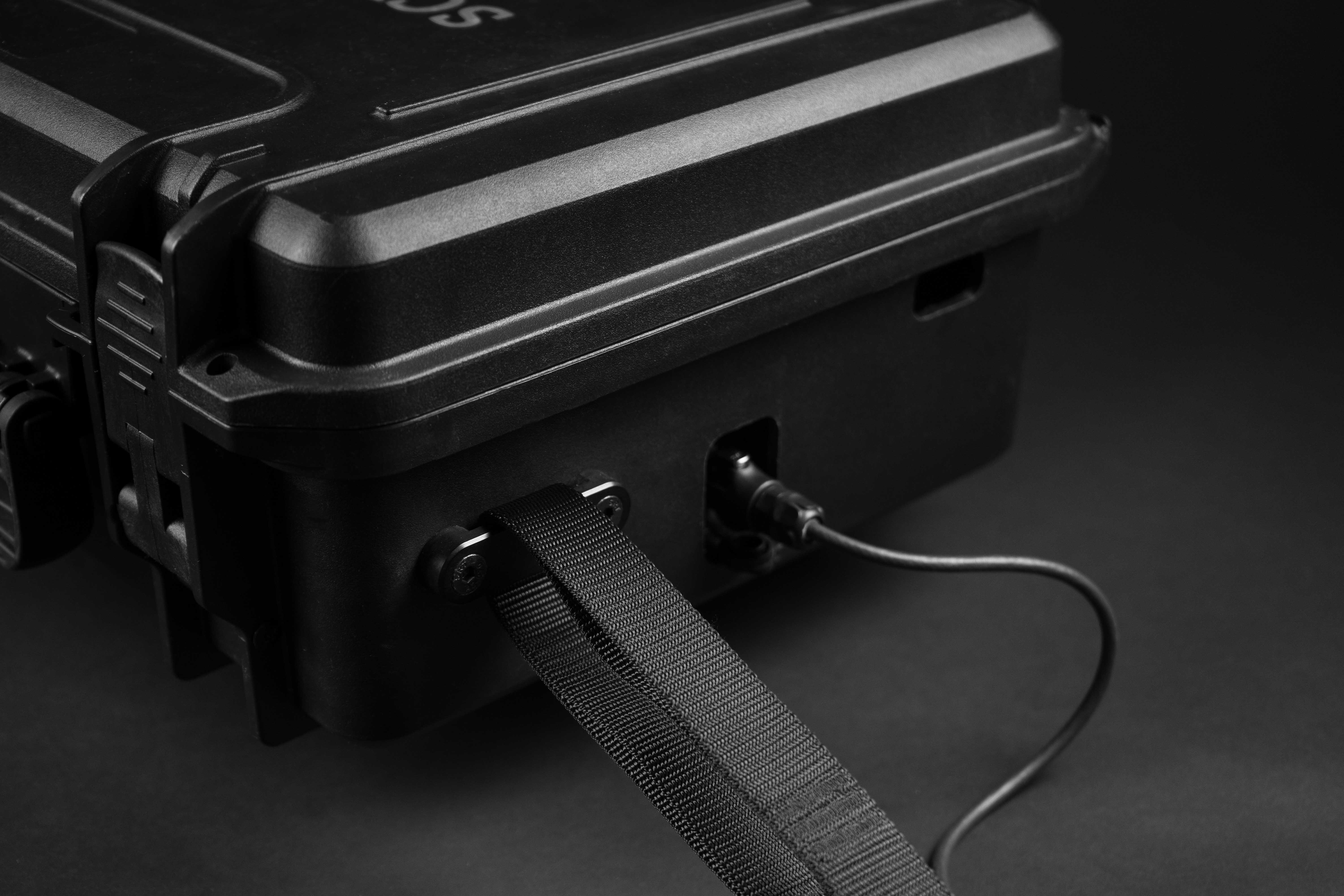

The horizontal design results into a low center of gravity. It takes only one strap to hold the winch in position. To get easy access to the spool, rope or batteries, just flip the cover open.

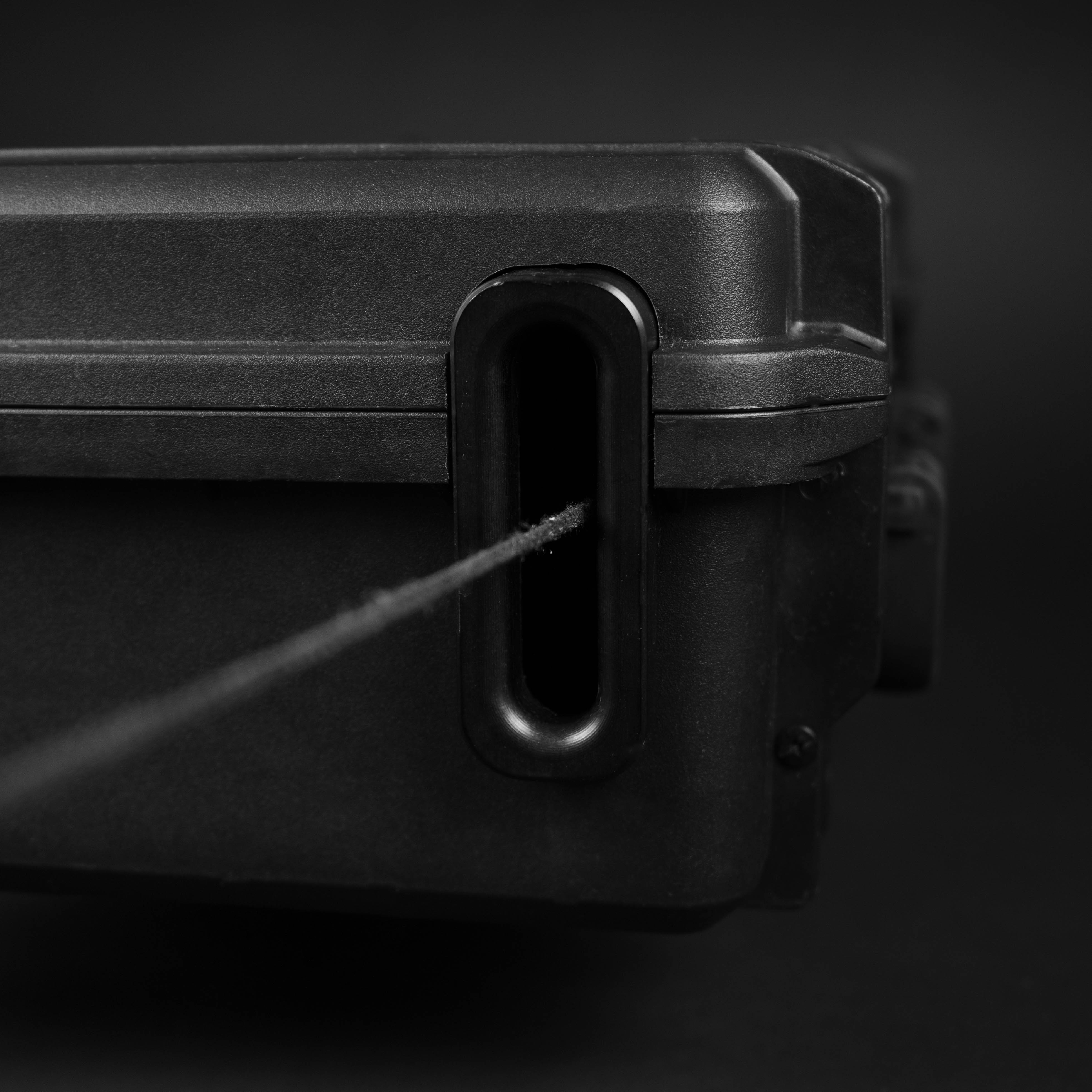

Sculpture Winch is equipped with a wake handle and 200 m of high performance Dyneema® rope. Breaking force 950 kg, no stretch, 3 mm, floating, black.

Felix Georgii Sculpture Electric Winch for Wake

HORIZONTAL

DESIGN

1/2
Pastura Sculpture Winch Front Board.jpg

We developed Winch Brain to offer you the best riding experience out there. Get the same constant pull on every single hit. Be no longer stressed out by poor operator skills.

Winch Brain monitors all batteries individually every half of a second with an accuracy of 0,05 volts. This is essential to prevent battery damages. You’ll be informed if batteries are low.



The WinchOS keeps the speed constant. Other winches get faster the more rope builds up.

Sculpture Winch. High speed electric winch for Action Sports. Wake, Wakeboard, Foil, Surf or Snowboard.

PERFECT PULL WITH

WINCH BRAIN

Felix Georgii Sculpture Winch Lorenz Hol

#pulledbysculpture

FelixAndrade_Boardslide_BUDDS_E9A04387.j

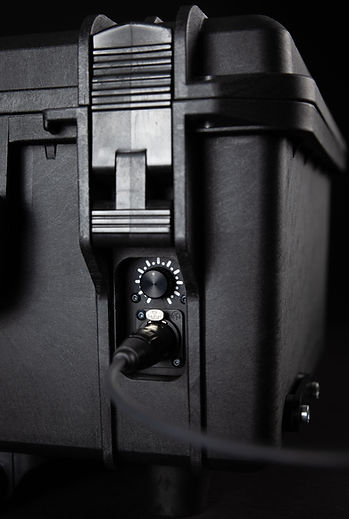

Sculpture Winch Controll Board.

We decided to design a wired controller instead of a rc-system. It will never fail because of low batteries or poor connection. Plug it in and you are good to go. No hassle going through a connection process on site.

Interface with no throttle. Sculpture Winch operates with only three buttons. Double press and hold the upper button on the hand held controller during the hit, that’s it. No advanced operator skills are needed.

Check the operation instructions.

Sculpture Winch. High speed electric winch for Action Sports. Wake, Wakeboard, Foil, Surf or Snowboard.

WIRED

HAND CONTROLLER

SWAPPABLE
BATTERIES

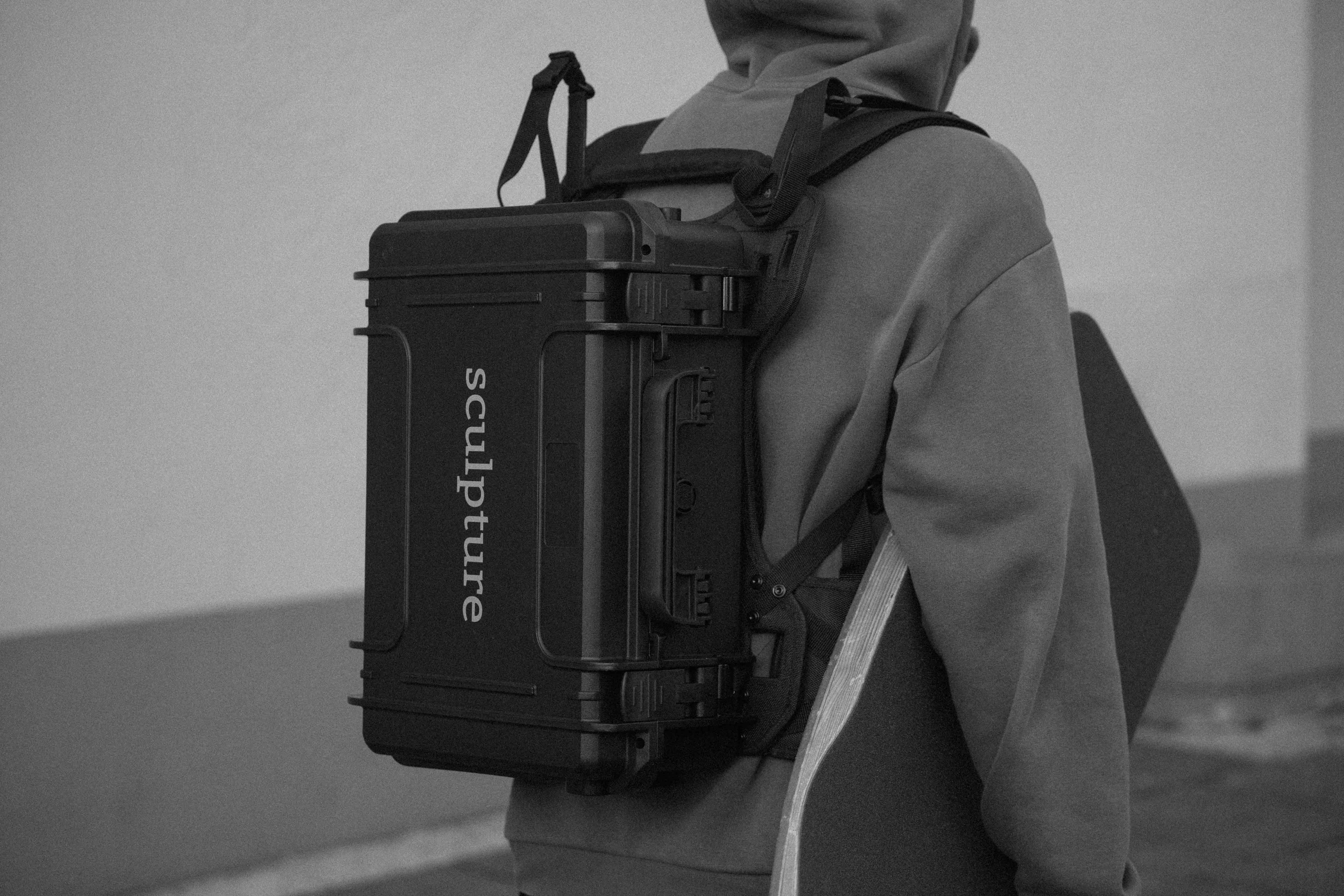

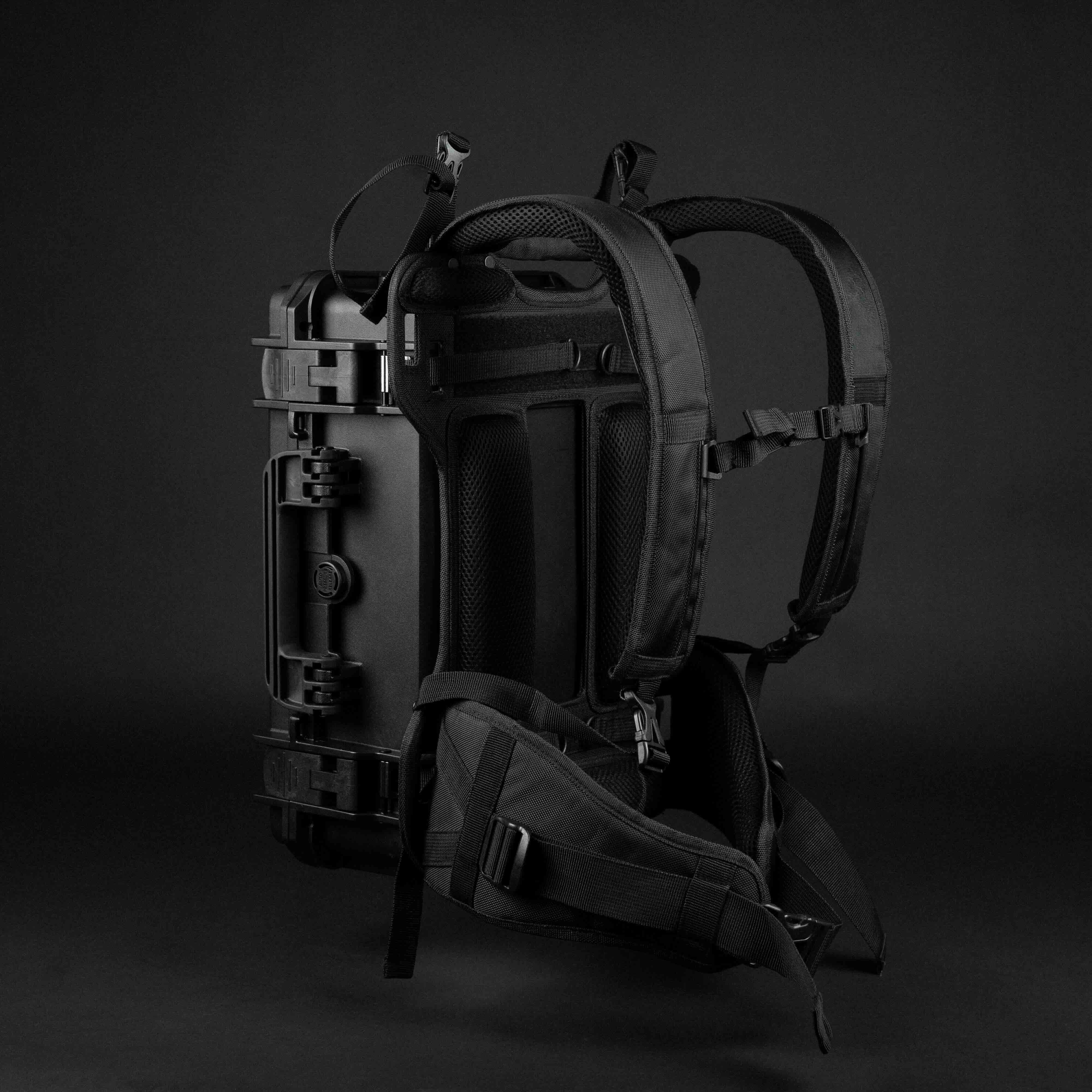

PORTABLE
OUTDOOR CASE

PRODUCT
WARRANTY

Sculpture Winch. High speed electric winch for Action Sports. Wake, Wakeboard, Foil, Surf or Snowboard.

DIRECT DRIVE
CONCEPT

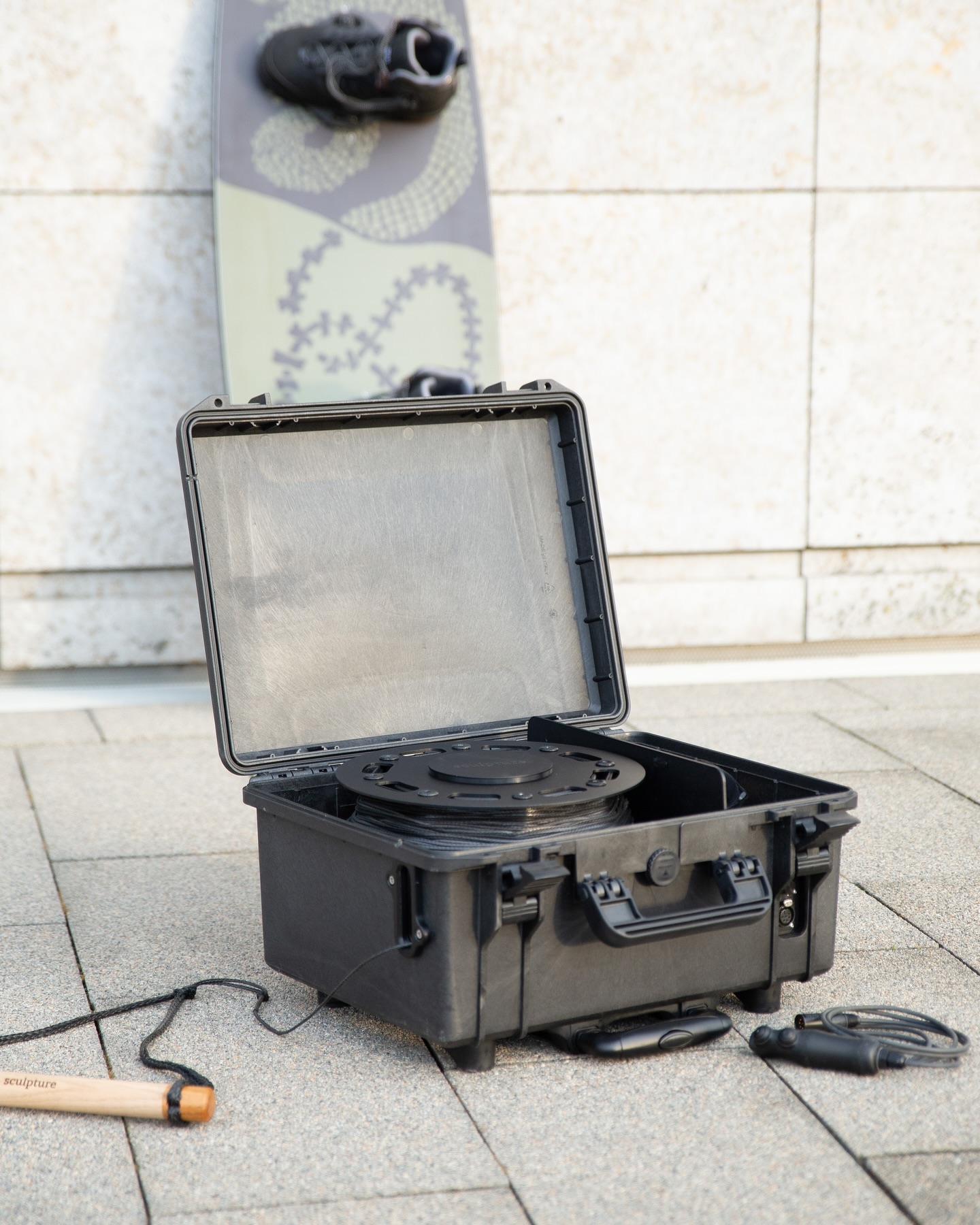

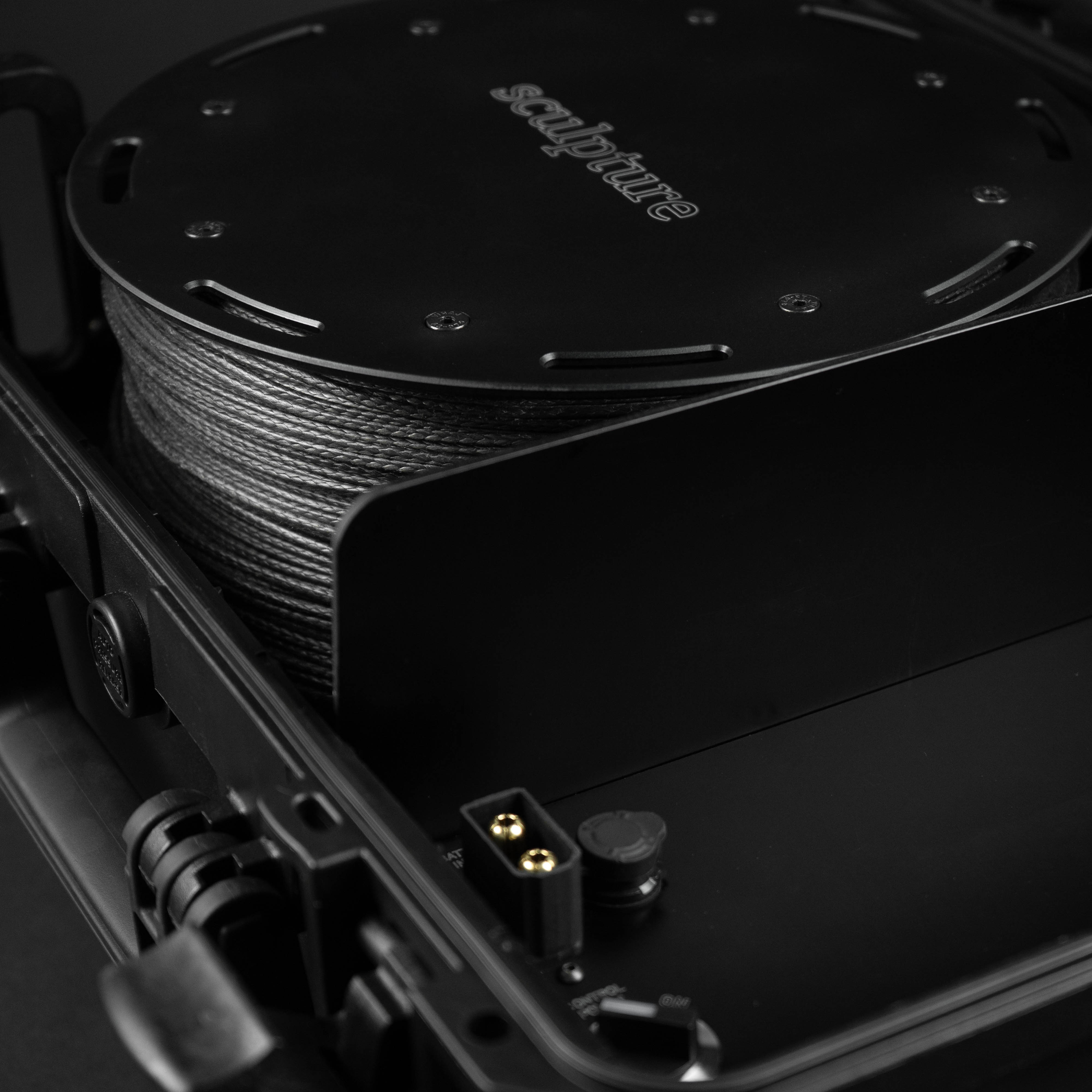

The motor is the spool. The rope winds around the electric hub motor. The hub motor delivers great torque, is energy efficient and maintenance free. There are no gear wheels, chains or other moving parts which cause wear or noise. Don't let worn down parts or loud noise ruin your session. A quiet and reliable winch is essential.

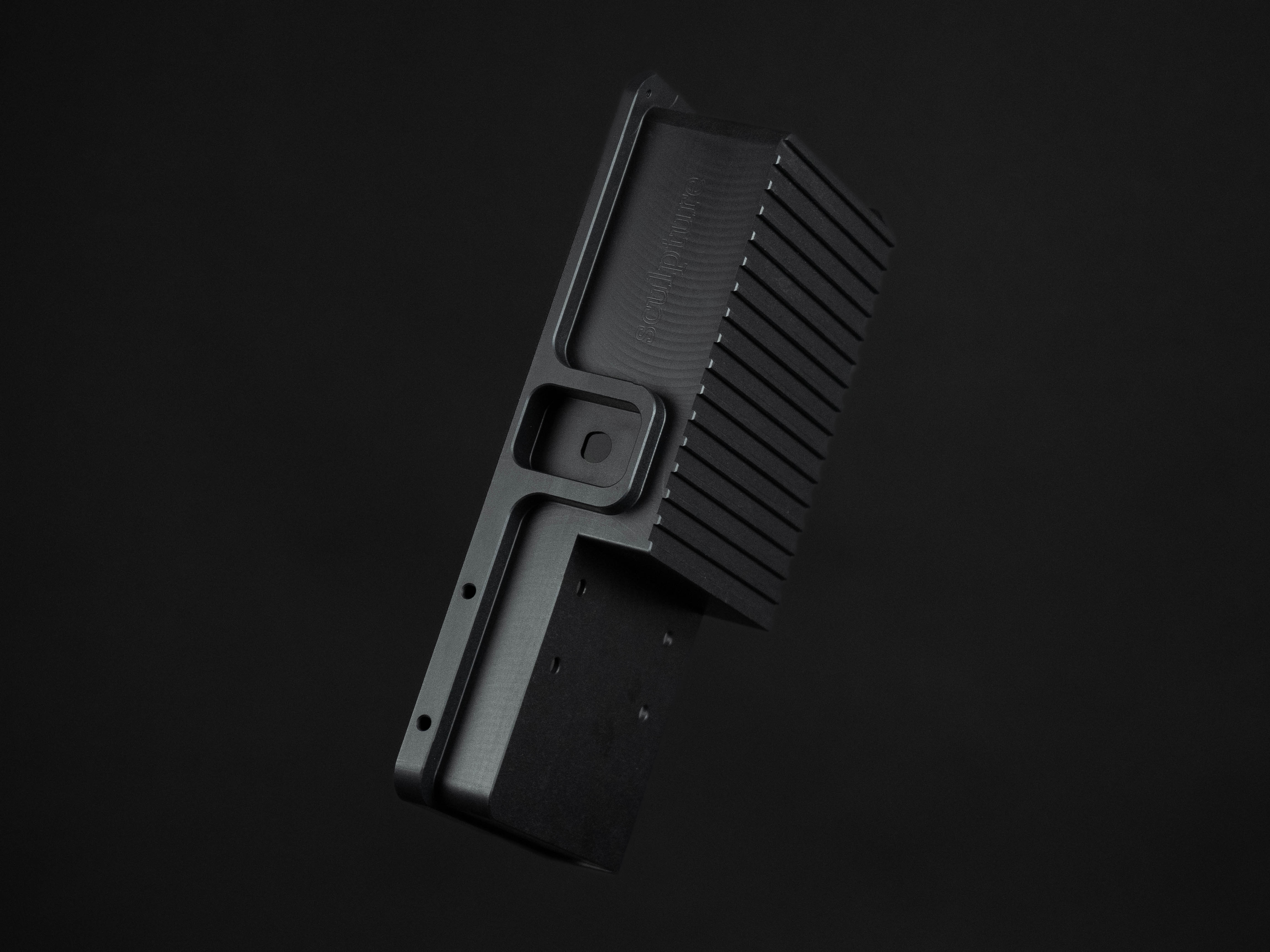

An ultra light anodized aluminum frame will absorb all accruing forces.

.
